AutoCAD Drawing Overlay

Description

AutoCAD Drawing Overlay.

Do you have a project starting that you want to visualise on the ground?

Do you have a project that you can’t understand where it is going wrong?

Do you want to impress your clients with a progress drawing?

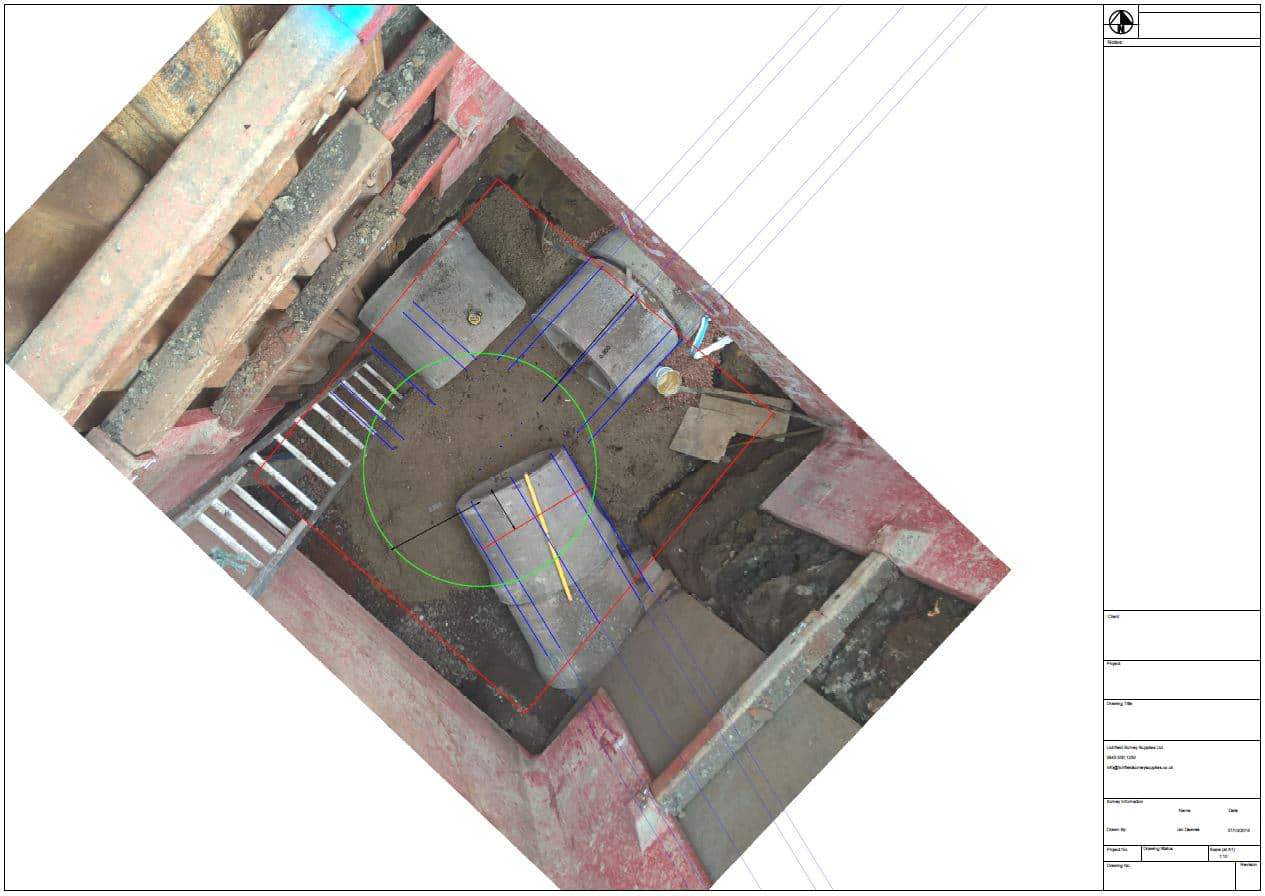

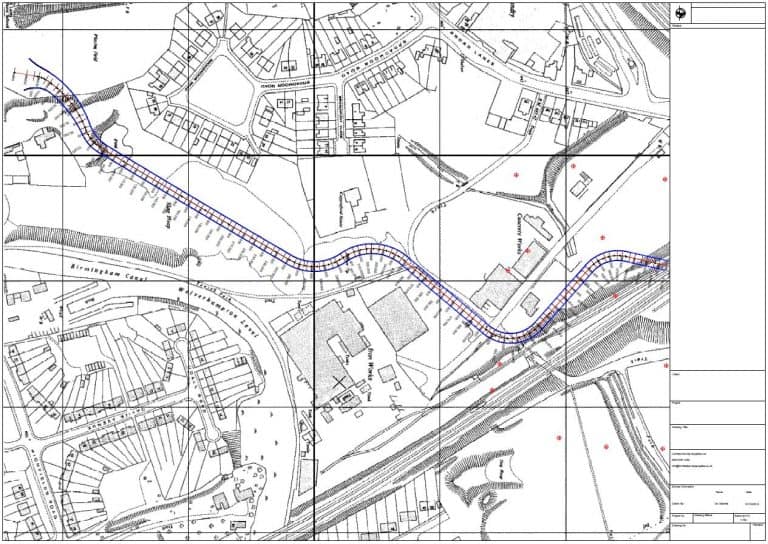

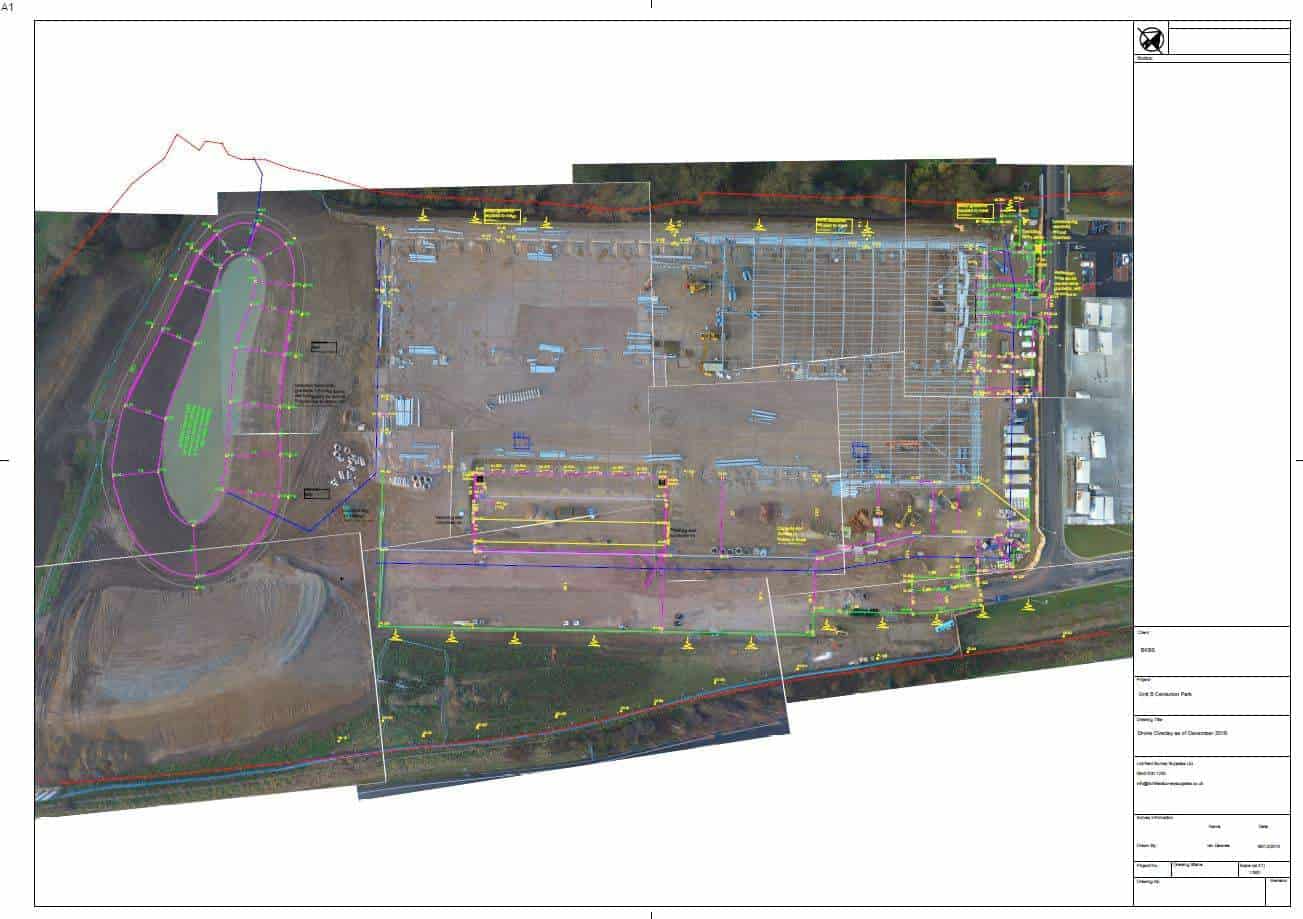

If you have answered yes to any of the above then we can help with our service of overlaying your AutoCAD drawing over an image of yours.  Simply provide Lichfield Survey Supplies with the desired AutoCAD drawing and the up to 5 images that you have the rights to use and we will overlay them and produce a drawing in pdf format.

You would need to provide at least two reference points in each of the files provided to ensure a good match between the images and the AutoCAD drawings.

This service is for one drawing in electronic pdf format.

If you want further information on this service or have further requirements then please contact us using the form below.
